| oxygen
concentrator
1 |
oxygen concentrator 2 |
oxygen concentrator 3 |
| |
|
|
|
 Oxygen Intake |
| |
|
|
|
| oxygen intake 1 |
oxygen intake 2 |
oxygen intake 3 |
|
| |
| |
| Specification |
| |
|
|
| |
1) Oxygen Concentrator |
|
| |
|
| |
| Oxygen concentrator: apply zeolite molecular sieve as shift, adopt advanced physical theory(PSA) to separate oxygen and nitrogen in air, at the same time filter the bad subtance in air, so as to get pure oxygen for medical use.
|
| |
|
|

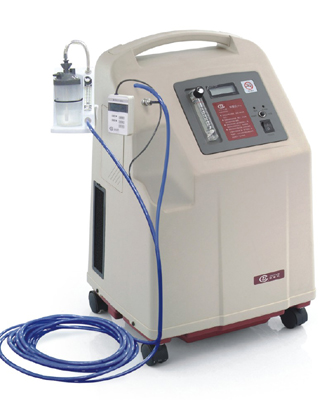

| a) Oxygen concentrator 1 |

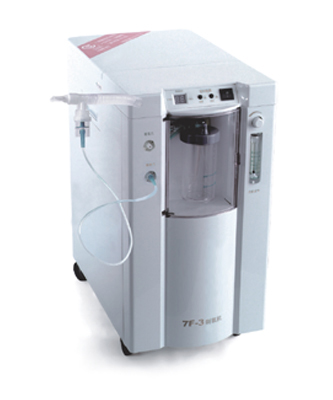

b) Oxygen concentrator 2 |

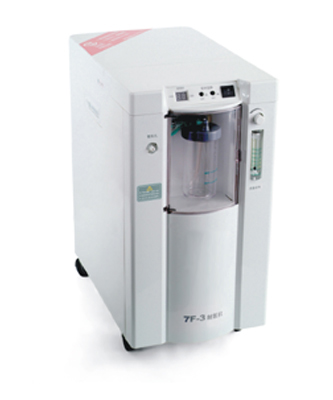

c) Oxygen concentrator 3 |
Power supply:AC220±22V,50±1Hz
Input power: ≤ 350VA
Oxygen concentration: ≥ 93 ± 3%
Oxygen flow: 1~ 3L / min
Output pressure: 0.04~0.05MPa
Oxygen temperature: room temperature
Operation noise: ≤ 60dB(A) |
Power supply: AC220±22V50±1Hz
Input power: ≤ 350VA
Oxygen concentration: ≥ 93 ± 3%
Oxygen flow: 1~ 3L / min
Output pressure: 0.04~0.05MPa
Oxygen temperature: room temperature
Operation noise: ≤ 60dB(A |
Oxygen concentration: ≥90%
Oxygen flow: 1~5L/min
Output pressure: 0.04~0.05MPa
Overrunning pressure alarm
Noise: ≤60dB(A)
Power supply: AC220±22V,50±1Hz
Input power: ≤600VA |
|
|
|
|
| |
|
| |
|
| |

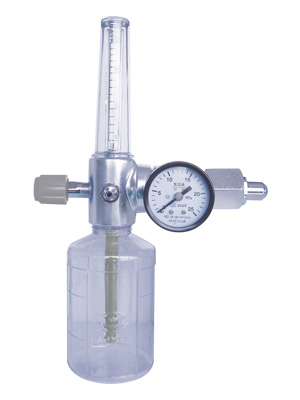

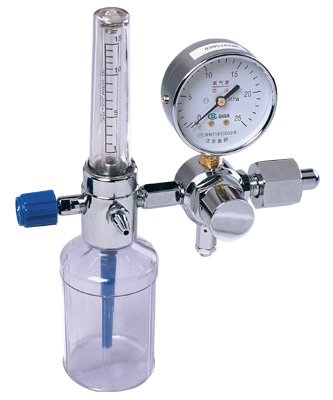

1) Oxygen Intake |
|
| |
|
| |

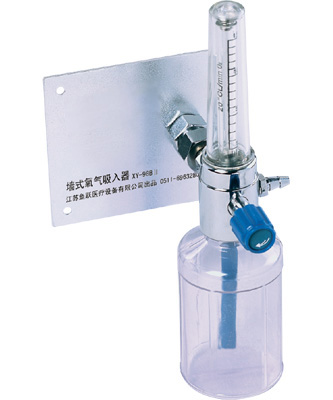

| Wall-hung oxygen take device is apparatus mounted at the two sides of clinic observation room or operation room, and it can be connected with the central oxygen tube, so it is convenient to manage centrally the oxygen cylinders in the hospital or patient ward. It is mainly used for heart weakness, breathing organ diseases, and recovery of patients after operation. |
| |
The major components are manufactured by heated punching technology, and cut with precision digitally controlled lathe and fit well with each other. The production & sale volume occupy the first in the domestic market, and its quality is reliable. |
| |
|
|
| |
| |
|
